Float, Old PowerVac Midmark Dental Vacuum Part: 015-2067-00/VPA126

Float Assembly For PowerVac Dental Vacuum

Part No. VPA125
OEM Part No. 015-2067-00

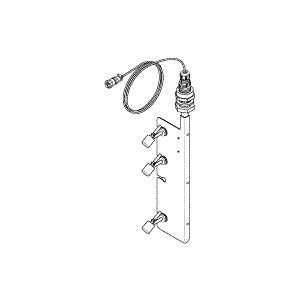

Float Assembly (Old)

• 3 Float Switches
• Includes: Three float switches with harness, float assembly bracket, PVC tank adapter, cable gland, and plug assembly with cable clamp
• See Service Tip below
• See Notes below for Serial Numbers this part fits

Fits: Separator Tank

This part fits Midmark Dental Vacuum Units Model(s): PowerVac P3, PowerVac P5, PowerVac P7

Notes:

Service Tip: Earlier versions of the PowerVac had three float switches, later PowerVac models and all PowerVac G models used two float switches. The middle float was for the liquid Evacuation Pump Option. If you have a liquid Evacuation pump connected to an earlier PowerVac you must replace the float assembly with a three float switch assembly. If there is no Evacuation pump connected to the PowerVac, you can replace the float assembly with the two float switch assembly (VPA125).

Models This Part Fits:

• PowerVac P3 (Serial #V245092 to V975824 & 0611P3P0000 thru Present)
• PowerVac P5 (Serial #V245092 to V975824 & 0611P5P0000 thru Present)
• PowerVac P7 (Serial #V245092 to V975824 & 0611P7P0000 thru Present)

Related parts that are also available but not included: Float Assembly (New) Part VPA125
