Float, Assembly For PowerVac Dental Vacuum Part: 002-1448-00/VPA125

Float Assembly For PowerVac Dental Vacuum

Part No. VPA125
OEM Part No. 002-1448-00

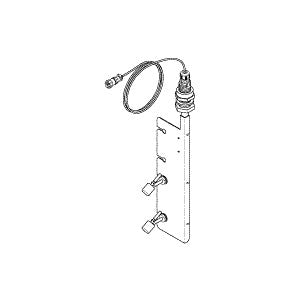

Float Assembly (New)

• 2 Float Switches
• Includes: Two float switches with harness, float assembly bracket, PVC tank adapter, cable gland, and plug assembly with cable clamp
• Also available: Float Assembly (Old) (VPA126)

• See Service Tip below
• See Notes below for Serial Numbers this part fits

Fits: Separator Tank

This part fits Midmark Dental Vacuum Units Model(s): PowerVac G G10, PowerVac G G14, PowerVac G G3, PowerVac G G5, PowerVac G G6, PowerVac G G7, PowerVac P10, PowerVac P14, PowerVac P3, PowerVac P5, PowerVac P6, PowerVac P7

Notes:

Service Tip: Earlier versions of the PowerVac had three float switches, later PowerVac models and all PowerVac G models used two float switches. The middle float switch was for the liquid Evacuation Pump Option. If you have a liquid Evacuation pump connected to an earlier PowerVac you must replace the float assembly with a three float switch assembly (VPA126). If there is no Evacuation pump connected to the PowerVac, you can replace the float with this version of the two float switch assembly.

Related parts that are also available but not included: Float Assembly (Old) (Part VPA126)
