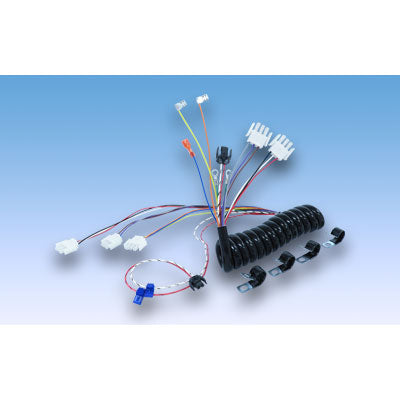

Main Coiled Harness, Midmark Chair Parts SKU: MIC294

Main Coiled Harness

RPI Part #MIC294
OEM Part #015-1000-00/01501293-00/015-1396-00/015-1342-00

Main Coiled Harness

• Connects main PC board to back and tilt actuators

• Material: 13 conductor cable; black jacket; all connectors and terminals pre-installed

• Generic cable- some applications may not use all of the connectors available
• See Notes below for Serial #'s this part fits

Also available but not included: Sensor Coiled Harness (RPI Part #MIC297)

Fits: Base Section

This part fits Midmark/Ritter Exam Tables & Chairs Model(s): 411, 419, and Evolution 75

Check Serial Numbers Here:

• Fits Models 411-009 thru -010: All serial #’s
• Fits Models 411-011 thru -018: All serial #’s
• Fits Models 419-003 thru -006: All serial #’s
• Fits Models 75-009: Serial #FA1000 thru present
• Fits Models 75-010: Serial #FB1000 thru present
• Fits Models 75-011: Serial #GT1000 thru present
• Fits Models 75-012: Serial #GV1000 thru present
• Fits Models 75-013: Serial #HY1000 thru present
• Fits Models 75-014: Serial #HZ1000 thru present
• Fits Models 75-016: Serial #JX1000 thru present
• Fits Models 75-017: Serial #JY1000 thru present
