Medical Illumination Xenon Fiber Optic Light Source (Single Port)

SKU: 03-1300XSB-SP
Availability: Call for Availability
(0)
$5,237.00

Xenon Fiber Optic Surgical Light Source (Single Port)

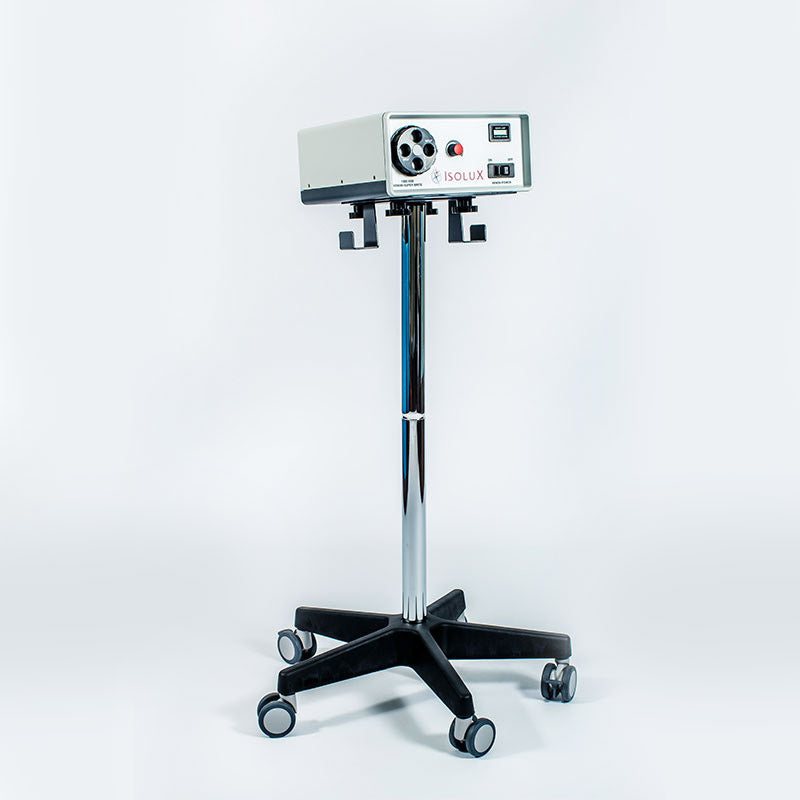

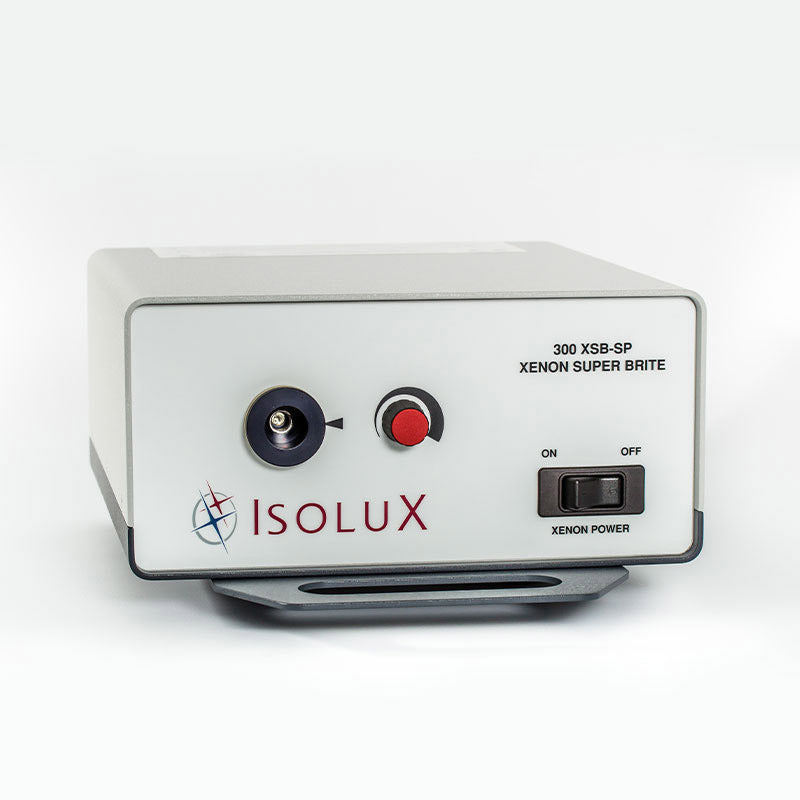

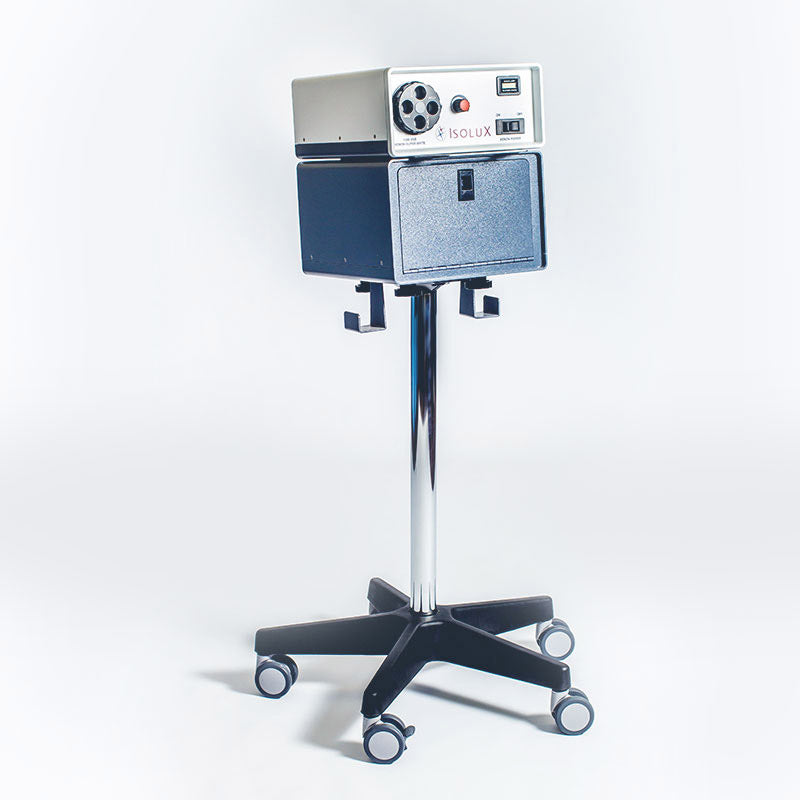

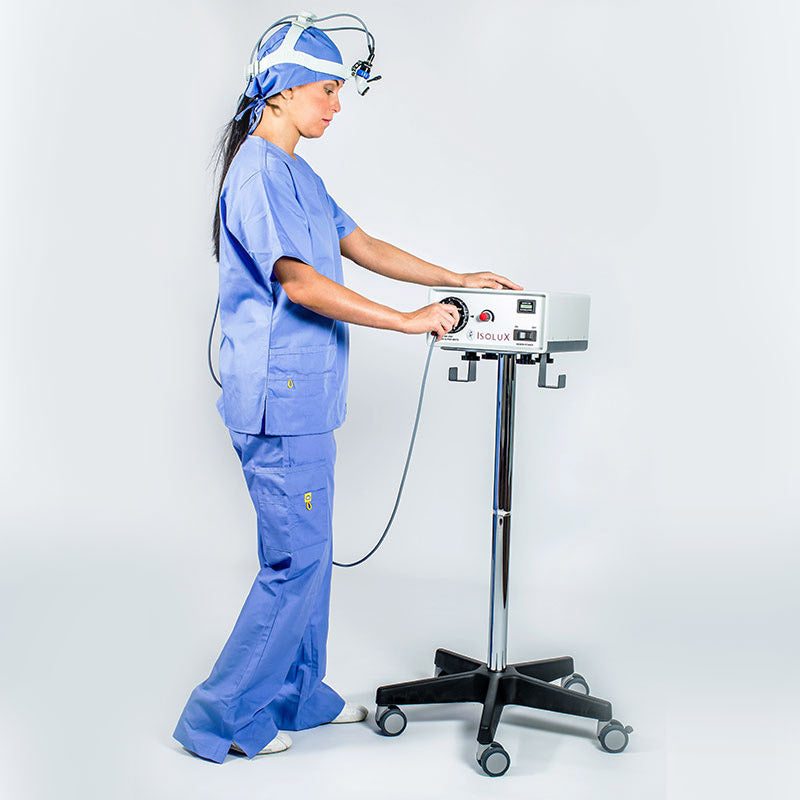

The Xenon Fiber Optic Surgical Light Source uses a 300 watt light that enables the illuminator to achieve a high-intensity daylight (natural light) output as a result of the lamp’s light collection efficiency. Features a Single-Port Wolf style port for fiber optic light guides with Wolf terminal connectors for compatibility with multiple fiber optic surgical lighting products. Available with mobile stand only or stand with storage box

Features

  • 300 watt powerful Xenon system
  • Intensity variable of 0-100%
  • Low noise fans and highly efficient down-flow cooling system
  • Aluminum handle
  • 500,000 Lux at the end of an 8ft x 0.20 inch fiber light guide cable

Specifications

  • Color temperature - 6,000°K
  • Color rendition index (CRI) - 99
  • Input AC range - 100 to 240 VAC @ 50 to 50 Hz
  • Input power - 590 watts
  • Dimming range - 0 - 100%
  • Operating temperature - -10 to 40°C
  • Storage temperature - -10 to 70°C
  • Operating humidity - 20 to 75% non-condensing
  • UL compliant - IEC 60601-1 Safety Tests
  • FDA certification - FDA 510K
  • Weight - 14 lbs
  • Dimensions - 5" H x 11" W x 12" D



No manuals or brochures available.

3 Years on Light Source, 1 Year on Power Supply, 500 Hours on Xenon Bulb
