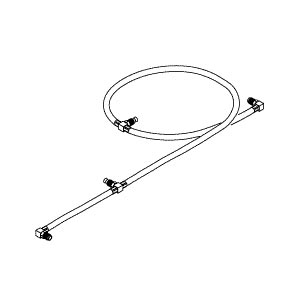

Hose, Power For Midmark Tables and Chairs Part:002-0109-00/MIH105

Power Hose For Midmark Tables and Chairs

Part #MIH105
OEM Part #002-0109-00

Power Hose

• Length: ~67.50"
• Fittings: 1/2-20 Inverted Flare
• Also available,

• See Notes below for serial numbers this part fits
• See Warning below

Fits: Connects Motor/Pump to bottom of Hydraulic Cylinders

This part fits Midmark/Ritter Exam Tables & Chairs Model(s): 105

Check Serial Numbers Here:
Fits Model 105-001 thru -002: serial #'s G1000 thru G1324 and H1000 thru H1019

Warning: When attaching hydraulic hoses to the RPI cylinders, torque the hose fittings between 55 - 60 Inch Pounds only. Additional torque could damage the threads in these cylinders. When replacing hydraulic hoses, route hose exactly as the original was installed to avoid pinching, chaffing and premature wear. Remember to replace any removed clamp, cable ties and safety devices when installing new cylinders and hoses.

Related parts that are also available but not included: Hydraulic Fluid Part RPF384
