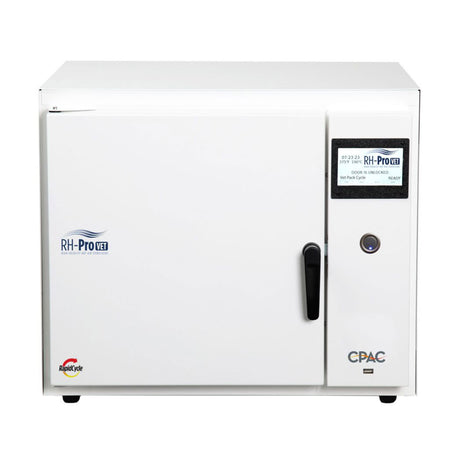

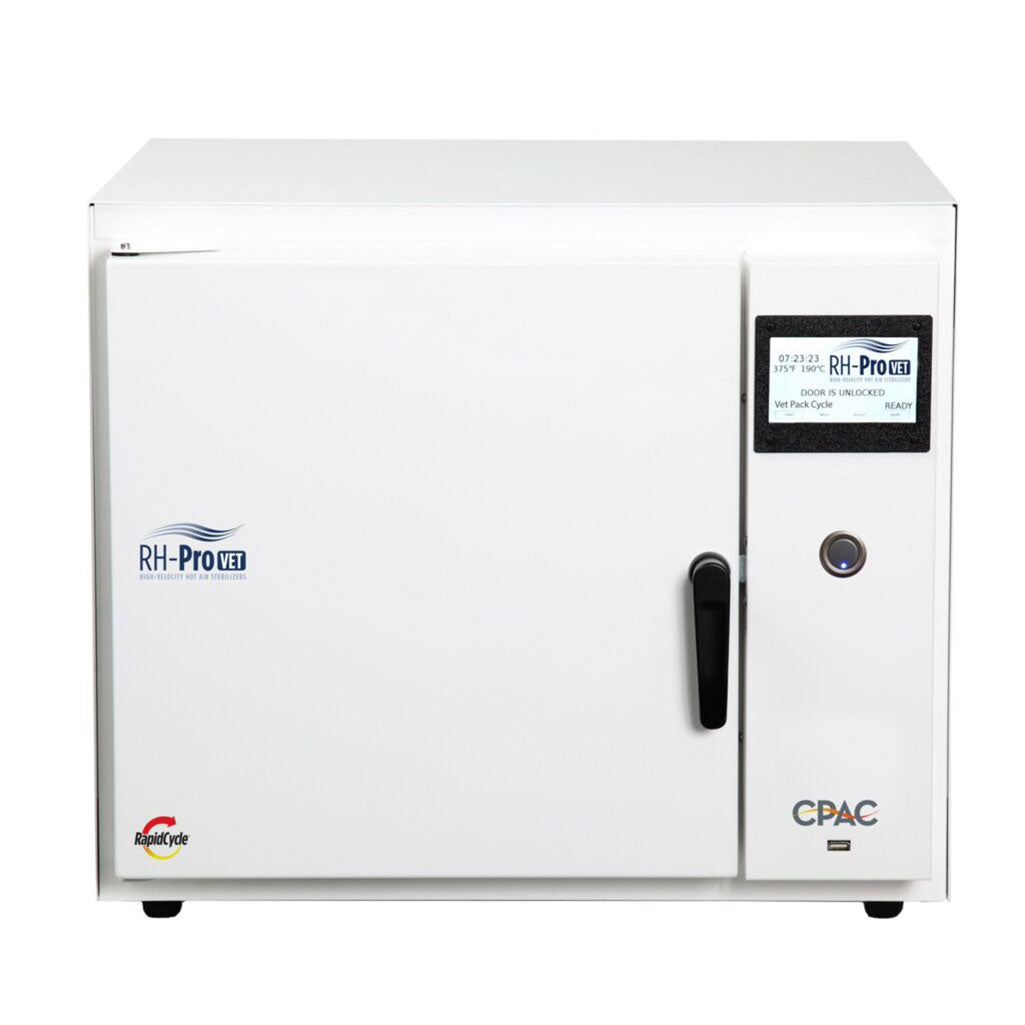

CPAC RH-ProVet11 RapidHeat HVHA Sterilizer

Processes up to 160 instruments or 4 to 8 packs per cycle
Processes packs up to 3 1/2 inches thick
Custom-designed pack rack for heat processing cycles
No more wet packs or pouches, uses no water
Custom 325°F cycle for all your sterilization needs
375° cycle for "Immediate-Use" fast instrument sterilization
Simple and easy touch-screen operation
65% more energy efficient than steam
Non-corrosive water less environment
No extensive maintenance - unlike steam sterilization

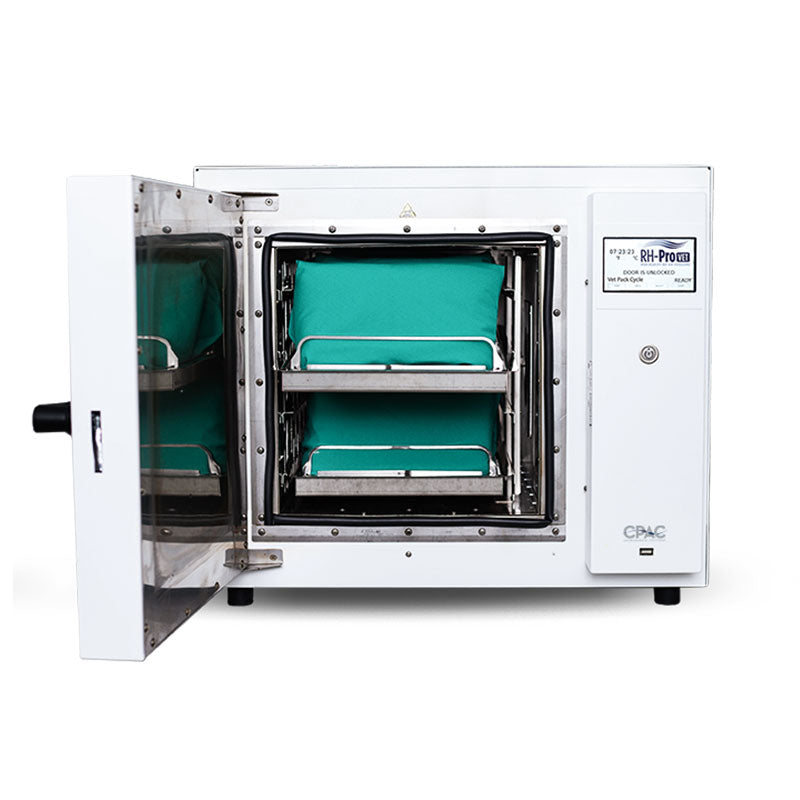

Large rectangular chamber with 4 large trays for more effective loading of instruments

115 VAC: 120 VAC +/- 10%, 60 Hz, 12 Amps - 1400 watts warm up, 300 watts operating
230 VAC: 230 VAC +/- 10%, 50/60 Hz, 6 Amps - 1400 watts warm up, 300 watts operating
Dimensions: 21.25" W x 22.5" D x 19.5" H
Chamber Dimensions: 11" W x 17.75" D x 11.75" H
Chamber Capacity: 2294 cubic inches (10 gal/38 liters)
Instrument Tray: 9" W x 15" D x 1" H
Instrument Tray Capacity: 540 sq inches (4 trays)
Load Capacity:
- Veterinary Packs: 4 Large Packs @ 1200g/Pack or 8 Small Packs @ 700g/Pack
- Unwrapped: 3.2 kg; 160 Instruments
- Hand pieces (Unwrapped and Wrapped): 24 Hand Pieces; 6 per Tray
- Wrapped Instruments: 3.2 kg; 8-10 Instrument/Pouch; 5 Pouches/Tray; 4 Trays/Load Total Instruments/Load: 60
- Wrapped Cassettes 5.5" x 8" x 1.5": 8 Cassettes (Total: 80 Instruments)
- Wrapped Cassettes 8" x 11" x 1.5": 4 Cassettes (Total: 80 Instruments)

Total Processing Times / 325° Veterinary Cycles

Total Processing Times / 375° Immediate Use Cycle

RapidHeat RH-ProVET11 High Velocity Hot Air Sterilizer
