Hose, Return For Midmark Tables and Chairs Part: 002-0095-00/MIH102
Couldn't load pickup availability

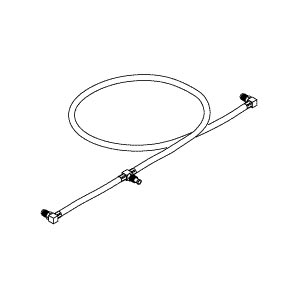

Return Hose For Midmark/Ritter Tables and Chairs
RPI Part #MIH102
OEM Part #002-0095-00
Return Hose
- Length: ~50.00"
- Fittings: 1/2-20 Inverted Flare
- Also available, Hydraulic Fluid RPI Part RPF384
- See Notes below for serial numbers this part fits
- See Warning below
Fits: Pump to Base
This Part Fits Midmark/Ritter Exam Tables & Chairs: 107, 307
Notes: Check Serial Numbers Here
Fits Model 107: all prefixes and serial #'s
Fits Model 307-001 thru -007: all prefixes and serial #'s
Warning: When attaching hydraulic hoses to the RPI cylinders, torque the hose fittings between 55 - 60 Inch Pounds only. Additional torque could damage the threads in these cylinders. When replacing hydraulic hoses, route hose exactly as the original was installed to avoid pinching, chaffing and premature wear. Remember to replace any removed clamp, cable ties and safety devices when installing new cylinders and hoses.
No manuals or brochures available.
