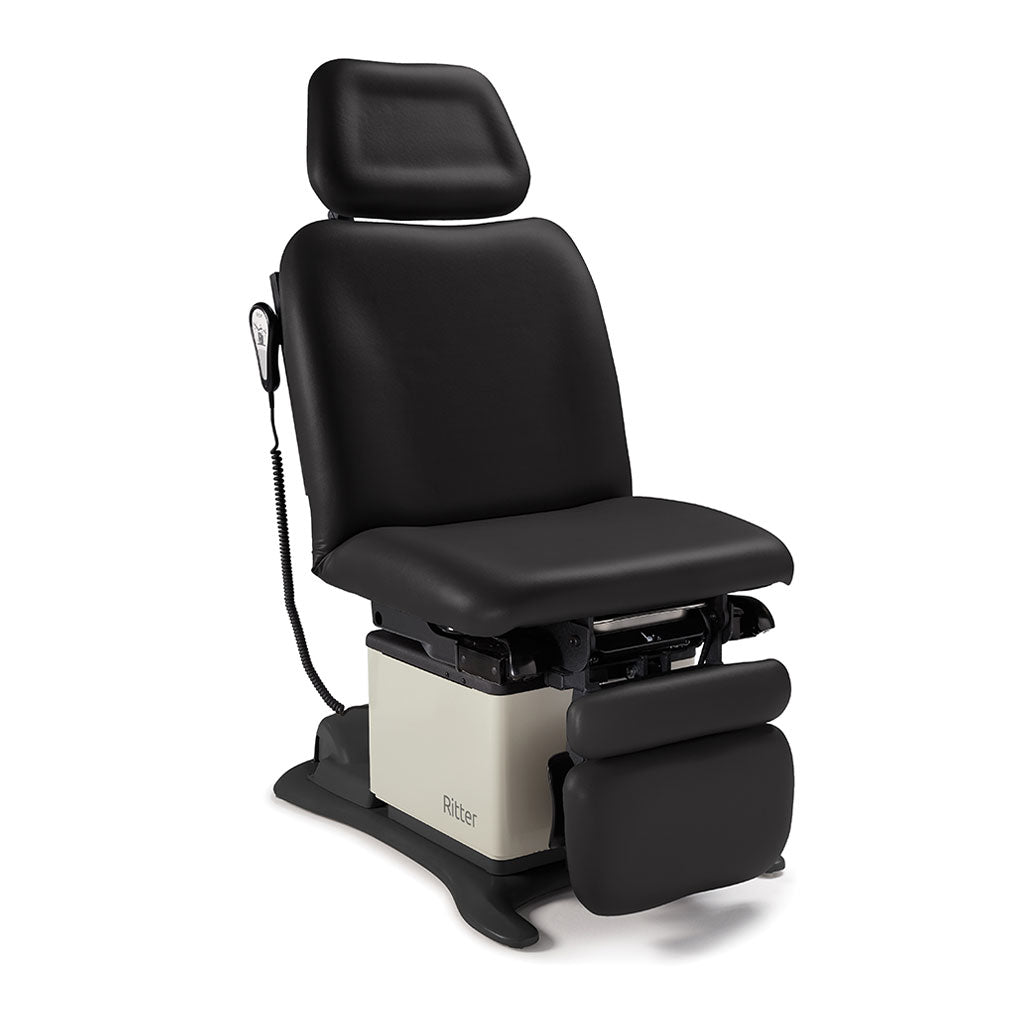

Midmark 230 Procedure Chair

The Ritter 230 Universal Power Procedures Table

The pressure of managing a medical practice is more complex than ever. The Ritter 230 Power Procedures Table is a wise investment that will improve the efficiency and comfort of both your staff and your patients.

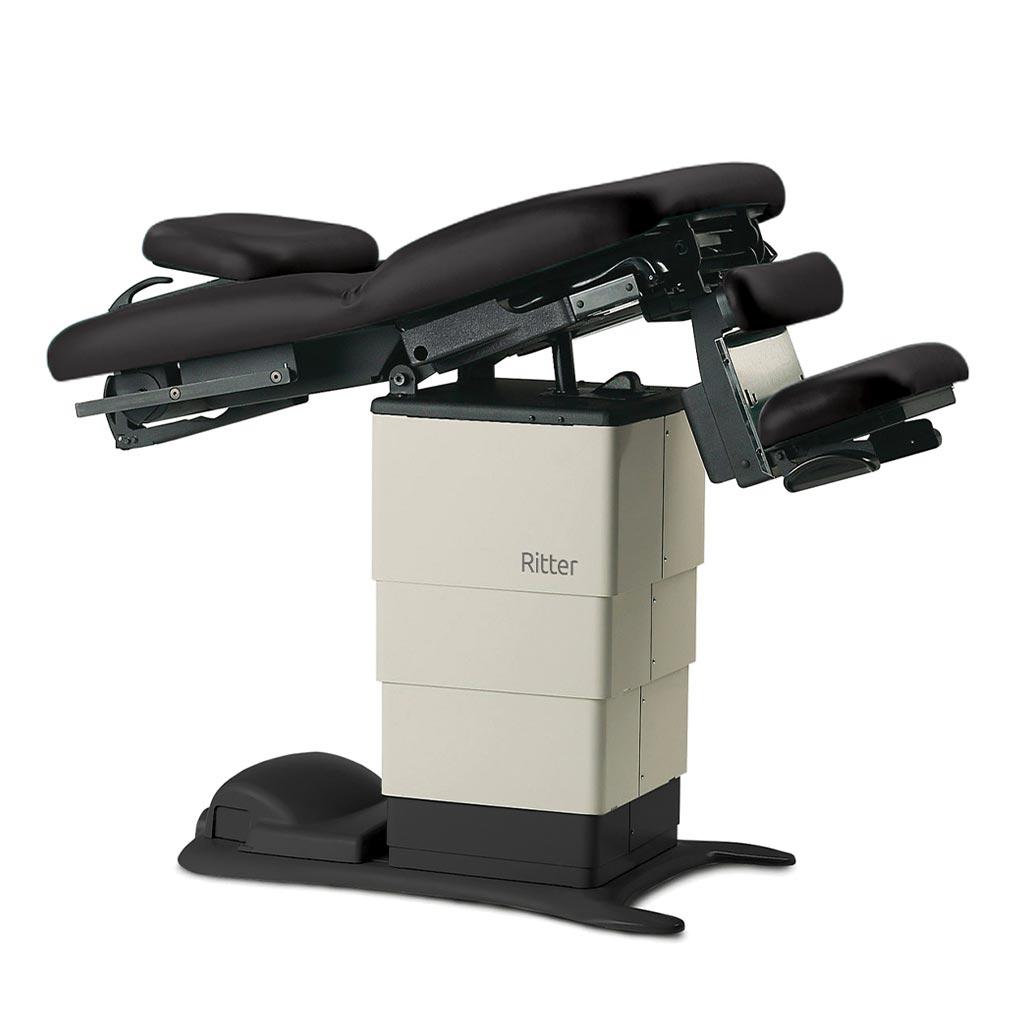

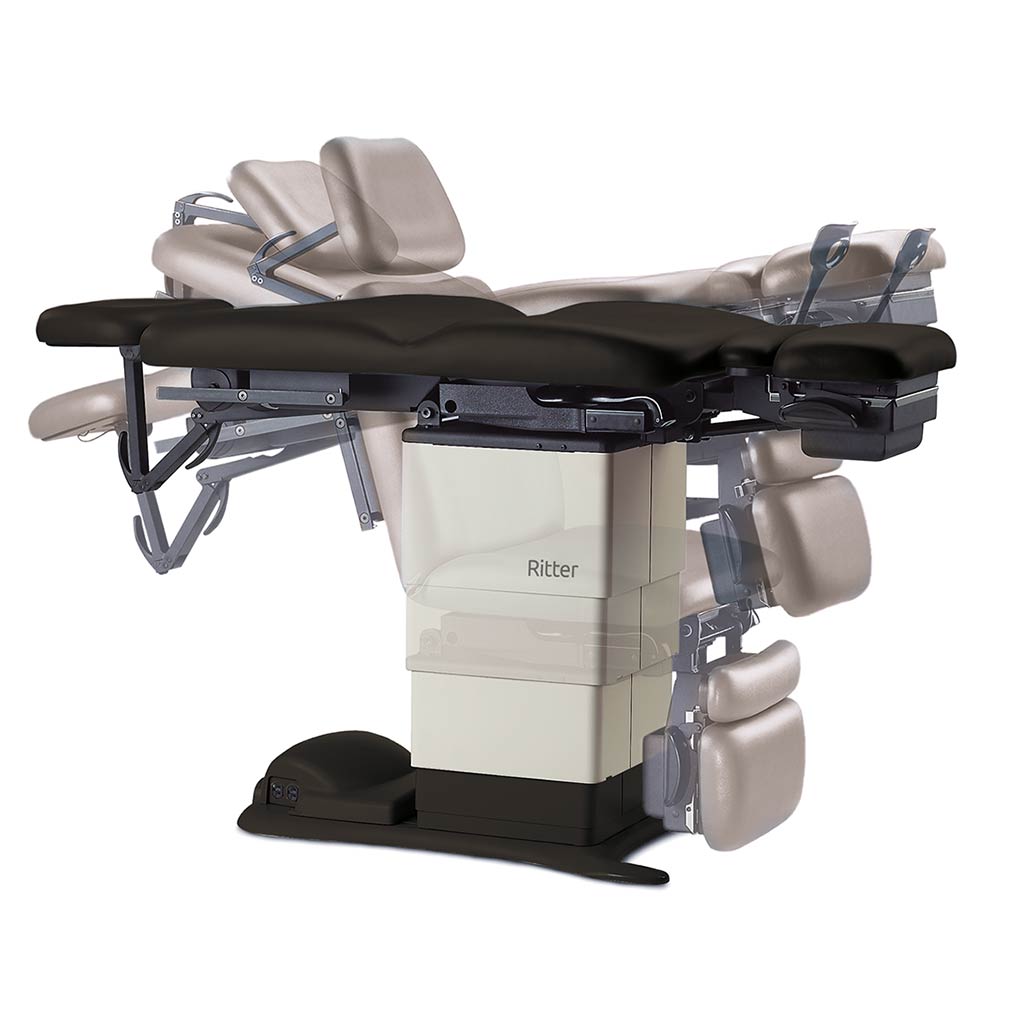

Midmark thought of everything when designing this table. With countless standard features and over 30 accessories, The Ritter 230 will satisfy your needs unlike any other solution. With the push of a button The Ritter 230 will move into numerous positions including knee-chest, lithotomy, flat, low entry and trendelenburg. The low height and multi-positioning capabilities help improve patient security; and at the same time reduce fatigue, back and neck strain, and work place injury.

Features and Benefits:

• Seamless Upholstery Top with Ritter 230 Exam Chair
• Power height, back, foot and tilt
• 450 lb. weight capacity with Ritter 230 Exam Chair
• Upholstery Width Dimensions: Headrest: 18" (45.7 cm), Back support: 28" (71.1 cm), Seat: 28" (71.1 cm), Foot Support: 18" (45.7 cm)
• Height: Minimum 22.5", Maximum 40" seat height adjustment (non-rotation models)
• Seat Tilt Angle Range: 0^o to 30^o
• Back Support Angle Range: 0^o to 85^o
• Foot Support Angle Range: 0^o to 90^o
• Patient Support Surface Length In Flat position: 72" or 83" with headrest extended
• Ritter 230 Power Procedures Table holds 18" x 3.5" paper roll
• Stainless Steel Treatment Pan
• Stirrups are standard
• Hospital grade outlets

Options:

• Rotation: Models equipped with rotation option add 3 1/2 inches to minimum and maximum height specifications
• Electrical Outlets: Duplex, hospital grade
• Flat upholstery set, 24" wide

Electrical Ratings:

• 115 VAC, 10 Amps, 50/60 Hz (for non-electrical outlet models)

Safety Standards:

• UL 60601-1 and CAN/CSA
• C22.2 No. 601.1 - M90
