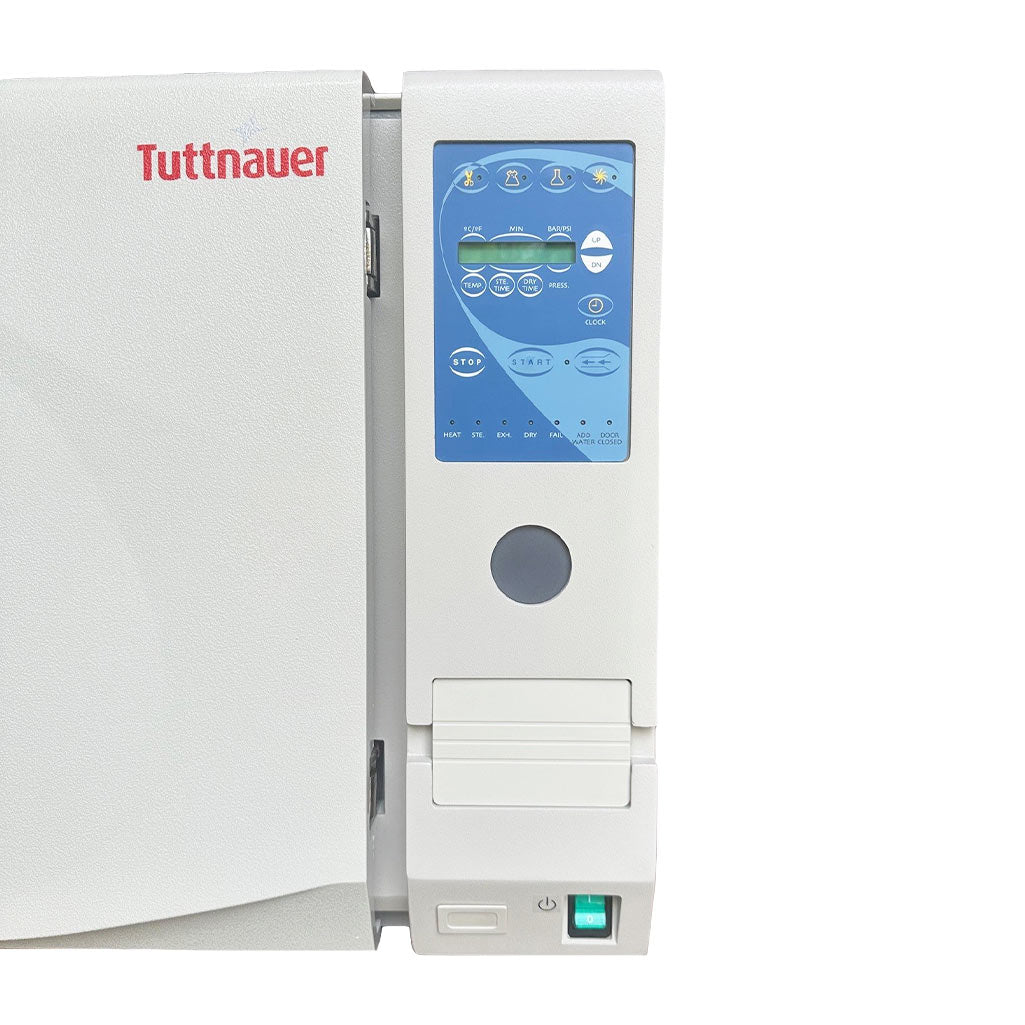

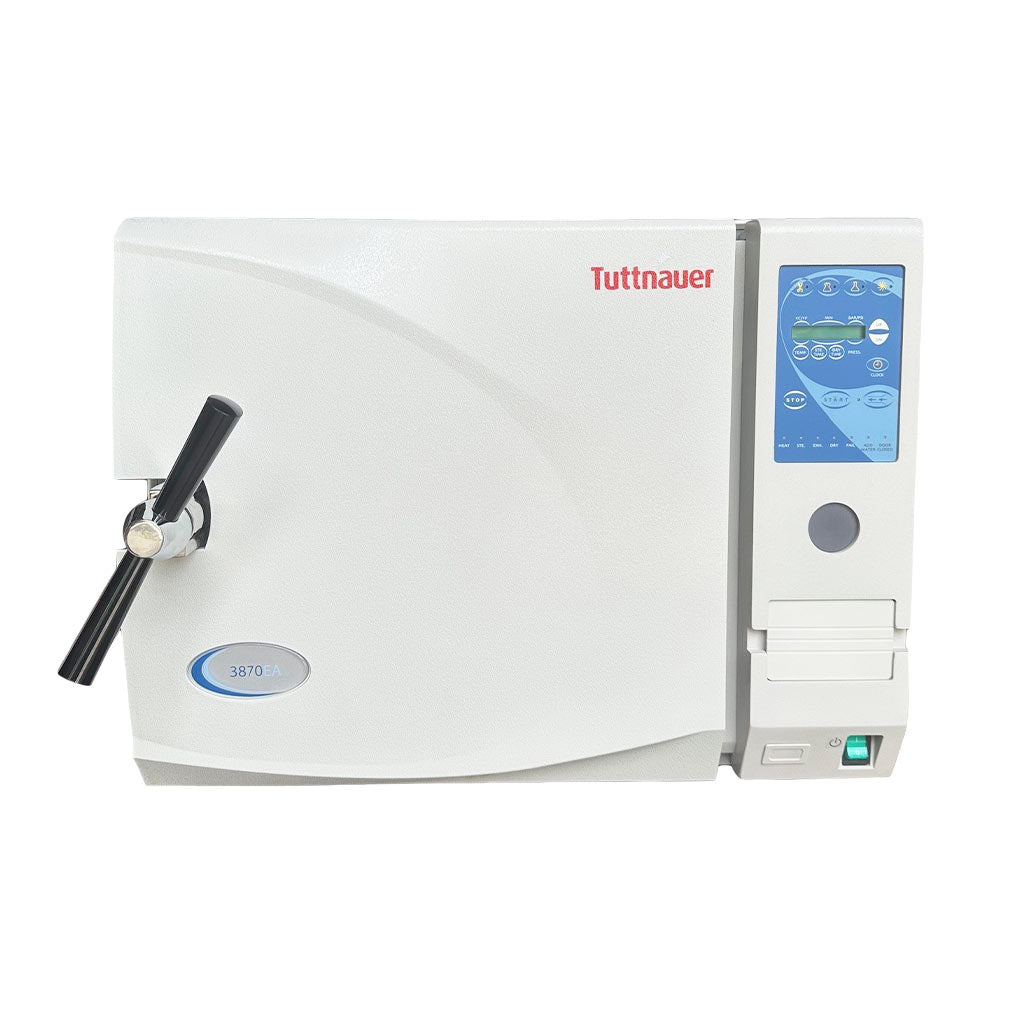

Tuttnauer 3870EA Refurbished Autoclave
Buy a New or Refurbished Autoclave from Us and Enjoy 1 Hour FREE Phone Tech Support. Exclusively Available for Tuttnauer, Midmark, and Market Forge Sterilizers; Call us for more information!
The Tuttnauer 3870EA autoclave is designed for the active surgery center, medical clinic, industrial lab, doctor's office, dental practice, veterinary facility, or tattoo establishment. The stainless steel construction is ideal for sterilizing liquids, media, instruments, glassware, soil or waste products.
Each stage of the sterilization cycle is automatic and micro-processor controlled from water-fill, to sterilization, exhaust, and drying. The autoclave has a low water alarm to notify the end user when the reservoir needs to be refilled with water, an in-line particle filter protects the valves, and the standby heating is to keep the chamber warmed up in between cycles. The pressure and temperature gauge are combined plus an automatic low water shut off will prevent damage to the heating elements if there is insufficient water to complete the sterilization cycle. The heat-insulated, double-locking door provides protection to the end user from accidental burns and stops the chamber from being opened during the sterilization procedure. The autoclave has a slow or quick exhaust choice, with the fast exhaust for drying solids, and the slow exhaust for preventing media and liquid blow over. the high enhanced closed-door drying cycle maintains sterility and removes extra moisture after sterilization. A continuous pressure purge removes air pockets and ensures even sterilization, and a large capacity reservoir provides plenty of water to avoid frequent refills (with the drain located on top for simplified cleaning). The autoclave also has an automatic shut-off for saving energy, and a battery backup ensures retention of settings and controls in the event of a power failure.
FEATURES
- Four programmed cycles: Wrapped, Unwrapped, Liquids and Drying
- Visual and audible cycle alerts
- Continuous digital display showing temperature, pressure and elapsed time
- Low water cut-off to prevent heating element burnout
- Safety door automatically seals when pressurized and cannot open until depressurized
VOLUME / SPEED /POWER
- 22 Gallon Chamber (83.3 Liters
- Holds 2 Trays
- Cycle Time: Varies based on items to be sterilized - Wrapped instruments 40-55 minutes
- Temperature range: 250 degrees F - 274 degrees F (121C - 134C)
- Unit Weight: 220 lbs (99.8 kg)
- Electrical: 230 Volts, 3000 Watts, 50/60 Hz, 13 Amps
DIMENSIONS / WEIGHT
-
Overall Size:
Width: 26" (66 cm)
Length: 34-1/2" (87.6 cm)
Height: 20-3/4" (52.7 cm)
-

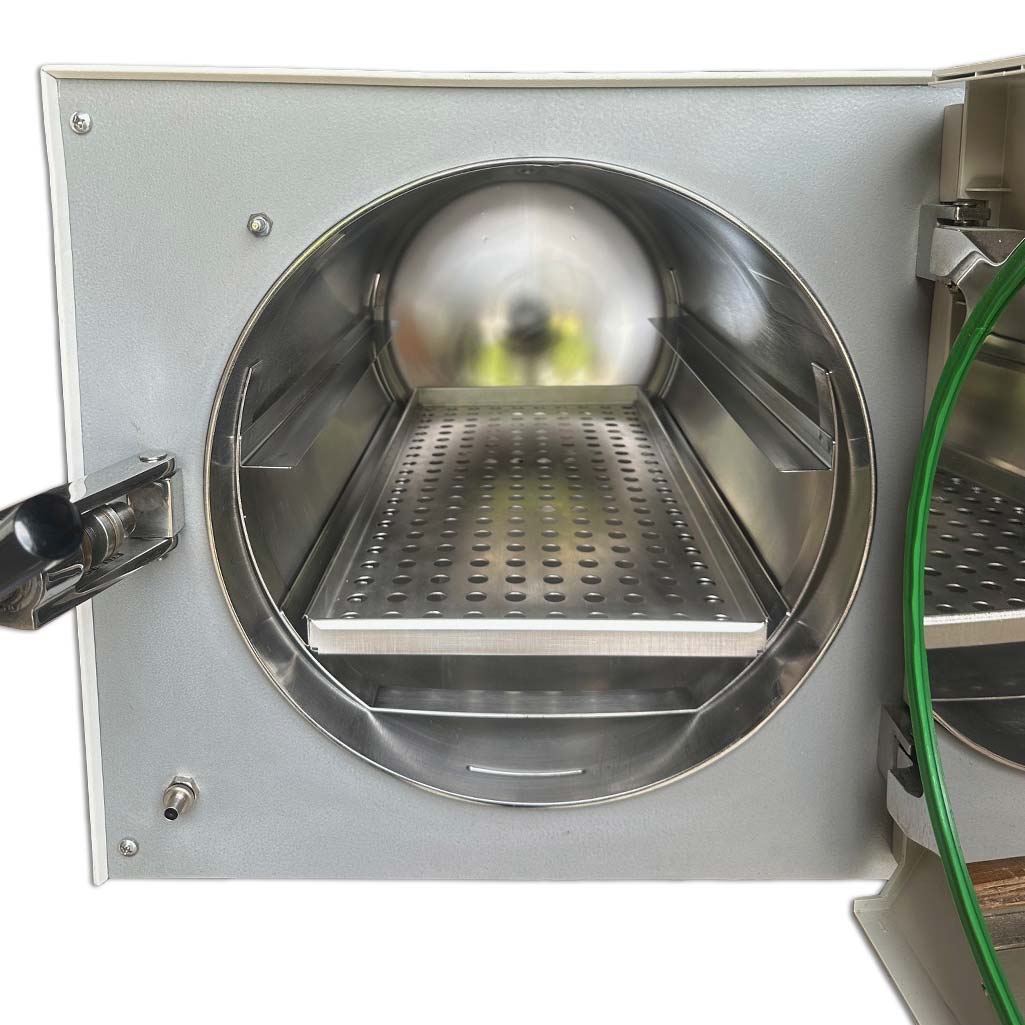

Chamber
Diameter: 15" (38.1 cm)
Length: 30" (76.2 cm)
-
Large Tray Size
Width: 14" (35.6 cm)
Length: 26" (66 cm)
Height: 1" (2.5 cm)
-
Small Tray Size
Width: 11" (27.9 cm)
Length: 26" (66 cm)
Height: 1" (2.5 cm)
This Tuttnauer 3870EA Autoclave has been through our careful refurbishment process as follows:
- Thorough inspection of ALL components, cosmetics and functionality.
- Replace all worn or bad parts.
- Sand and paint the frame and chassis as needed.
- Clean reservoir tank by removing debris and particulates.
- Clean and polish chamber and reservoir. Blow out all lines.
- Replace safety mechanisms, controls, relays, condenser, thermostat, valves, switches, filters and all other parts as needed.
- Clean and lubricate all moving parts.
- Inspect and repair all pressure and water leaks.
- Check and lubricate door closure.
- Replace door gasket regardless of condition.
- Test and calibrate to manufacturer's specifications.
- Repeated cycle testing for added assurance.
- Spore testing at various positions within the chamber.
Whats In the Box?
Refurbished Tuttnauer 3870EA Sterilizer
Operator Manual
2 Trays
5 Biological Test Strips
