Unico PowerSpin DX Centrifuge - Variable Speed - C8724/C8706/C8704

Unico DX Variable Speed Centrifuge With Three Rotor Options

Documentation:

UNICO is proud to introduce the PowerSpin™ DX Centrifuge with three rotor options. The PowerSpin™ DX is the right centrifuge for handling every day laboratory tasks. Choose from 24 place fixed rotor for 2-15ml tubes (#C8724), 6 place horizontal rotor for 2-15ml tubes(#C8706) or 4 place horizontal rotor for up to 50ml tubes (#C8704) The PowerSpin DX series features a large, spacious stainless steel lined interior, all digital push-button control with 3 preset operational modes for Blood, Urine and Fecal, variable speed 500-4000 RPM and zero RPM lid latching system. The DX series includes three main versions: fixed angle, horizontal spin rotor, and vertical spin rotor. A great feature of DX's is that the brushes are maintenance-free and the feet are suction cup rubber.

Choose from a

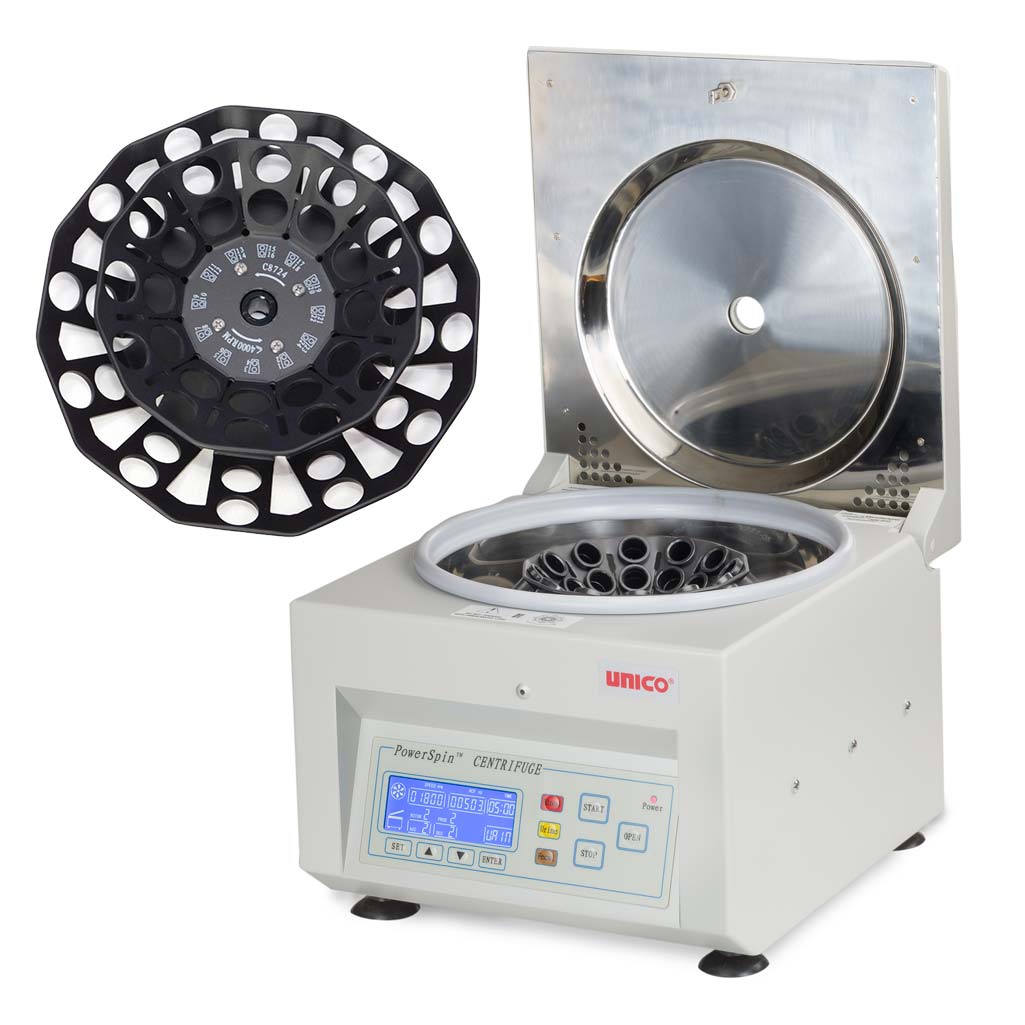

-24 place fixed rotor for 2-15ml tubes (C8724)

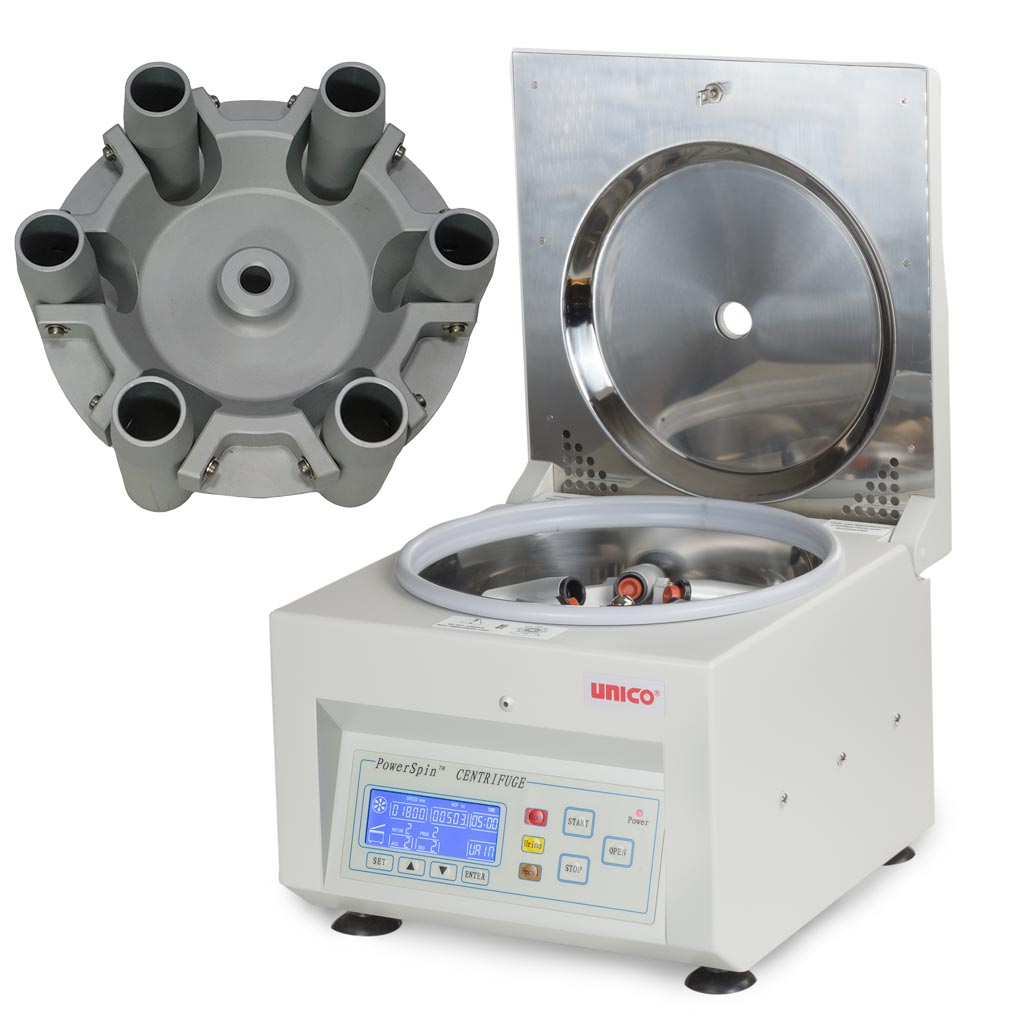

-6 place horizontal rotor for 2-15ml tubes (C8706)

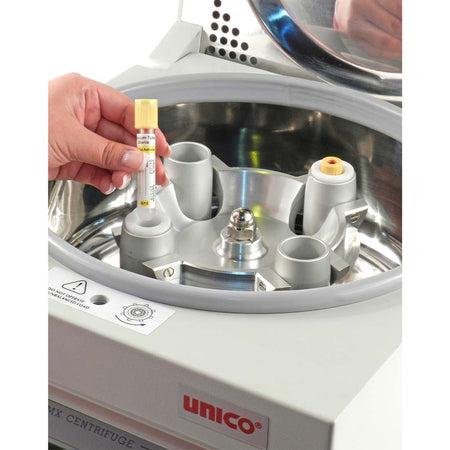

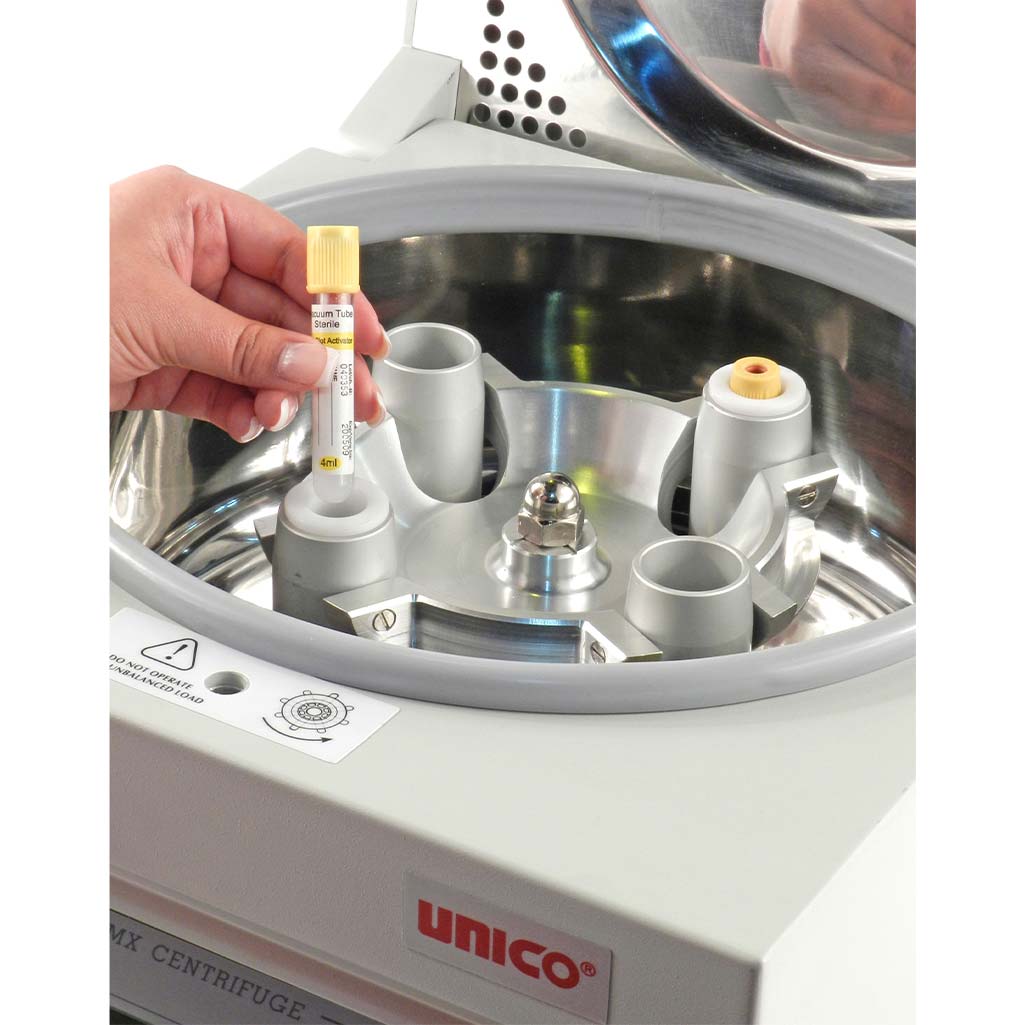

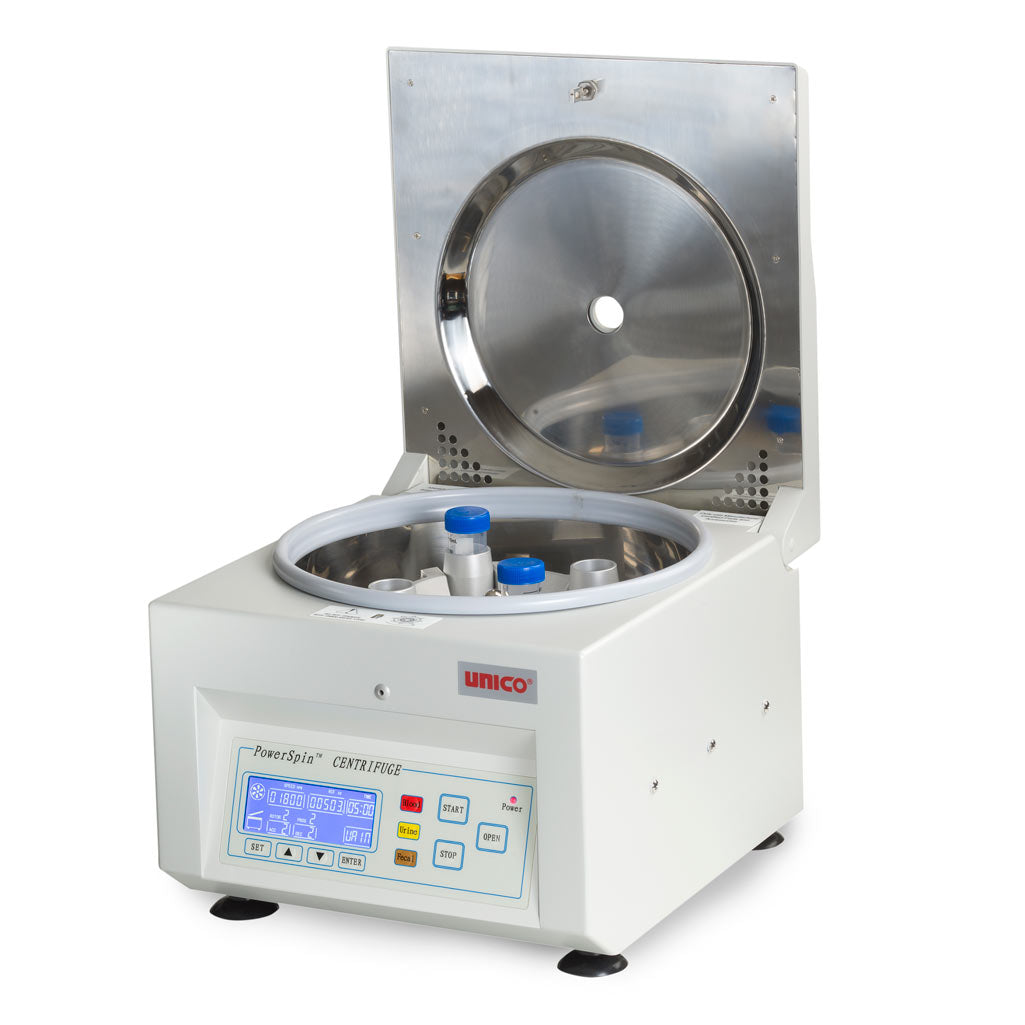

-4 place horizontal rotor for up to 50 ml tubes (C8704)

Model C8724 - 24 Place

• Capacity - 24 x 10 ml angled
• Max. Speed - 4000rpm
• Speed range - 500-4000rpm
• Max. RCF - 1848g
• Timer - 1:00 - 99.99
  Motor - DC 300W
• Noise - 65 dB
• Power - 110V
• Dimensions - 350 x 380 x 290 mm
• Weight - 20kg (44lbs)

Model C8706 - 6 place

• Capacity - 6 x 15 ml horizontal

• Max. Speed - 4000rpm
• Speed range - 500-4000rpm
• Max. RCF - 1848g
• Timer - 1:00 - 99.99
• Motor - DC 300W
• Noise - 65 dB
• Power - 110V
• Dimension - 350 x 380 x 290 mm
• Weight - 20kg (44lbs)

Model C8704 - 4 place

• Capacity - 4 x 50 ml horizontal

• Max. Speed - 4000rpm
• Speed range - 500-4000rpm
• Max. RCF - 1848g
• Timer - 1:00 - 99.99
• Motor - DC 300W
• Noise - 65 dB
• Power - 110V
• Dimension - 350 x 380 x 290 mm
• Weight - 20kg (44lbs)

Features:

• 3 preset programs for blood, urine and fecal; easy to select buttons while wearing gloves
• Set any centrifugation protocol by using set, up arrow, down arrow and enter buttons
• Wide rotor selection for use with standard 3 to 50 ml tubes (Optional adapters may be required for tubes less than 10ml or 100mm length)
• Digital variable speed control with speed range from 500 RPM to 4000 RP<
• Automatic speed (RPM) and G-Force real-time digital display
• Electronic 1:00-99:59 timer with beep signal at end of run (then the lid latch will open)
• Automatic time and speed memory reset to the last run for repetitive protocols
• Memorized time and speed settings: The centrifuge will memorize the last time and speed settings when the unit is turned off. It will resume the previous time and speed settings when the unit is turned on
• Selections of different level of acceleration and deceleration controls
• Maintenance free brush-less DC motor
• Safety: Zero RPM lid latch protection - The centrifuge lid cannot be opened until the unit stops spinning. It will not run unless the lid is properly closed
• Suction cup rubber feet for stable bench top operation
• Power switch with indicator light tells when unit is powered on
• Power on/off switch located on back of unit
