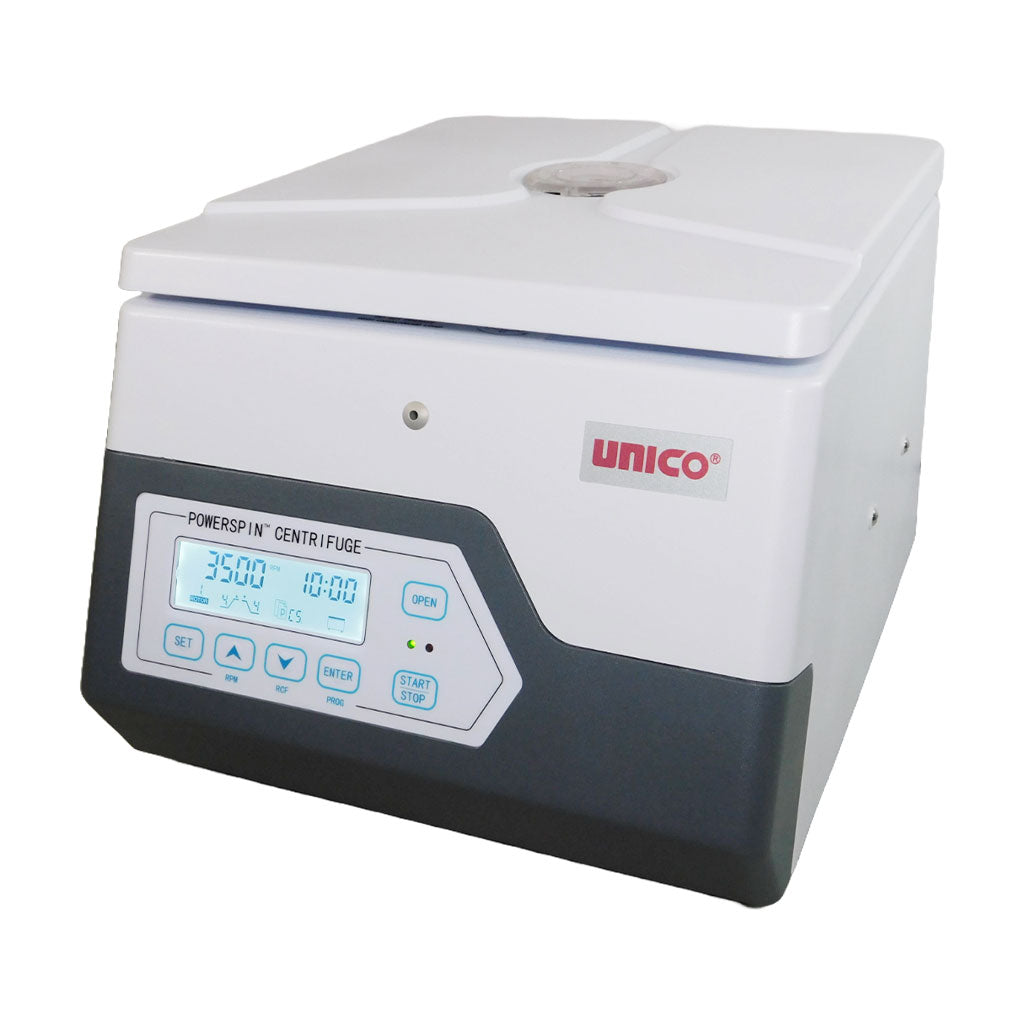

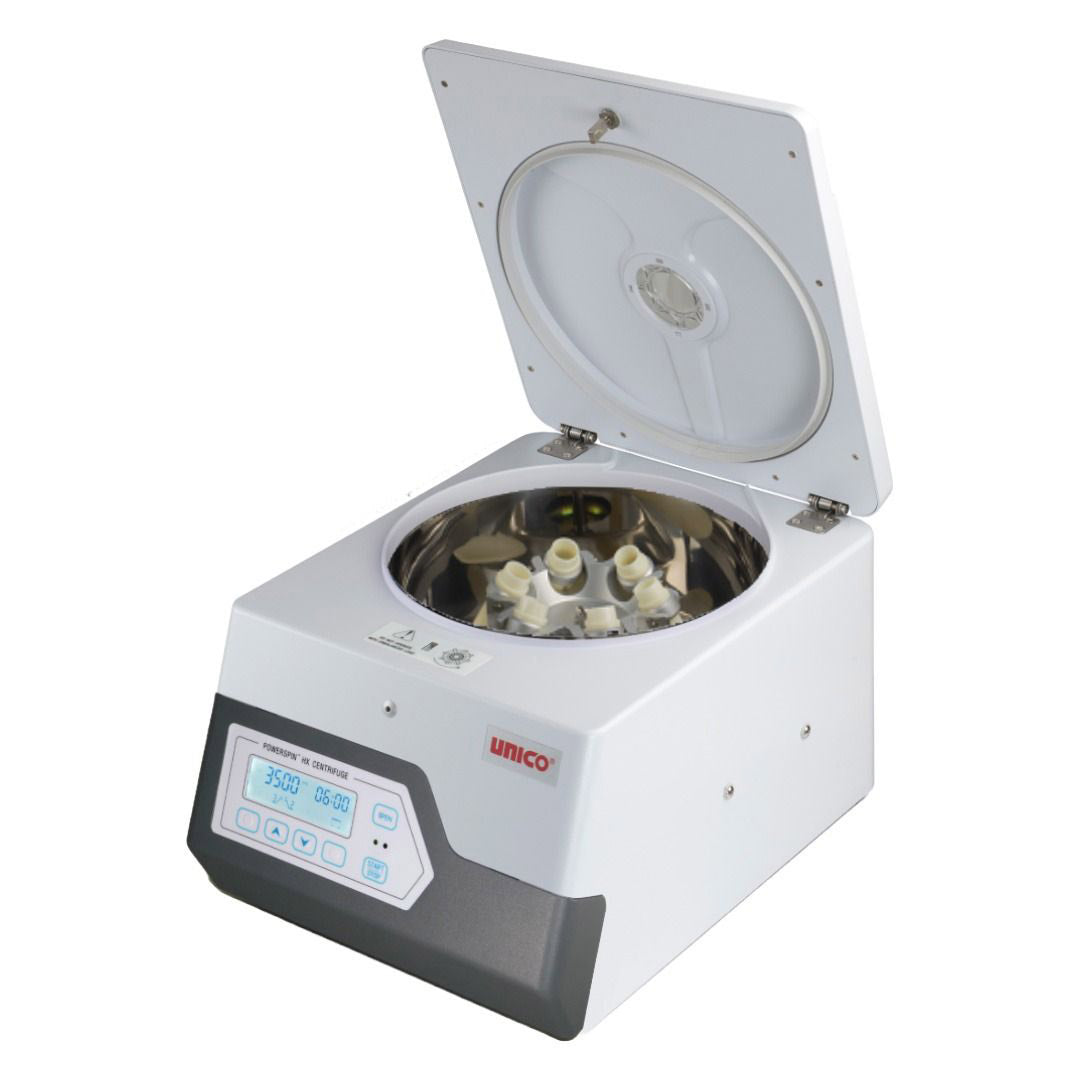

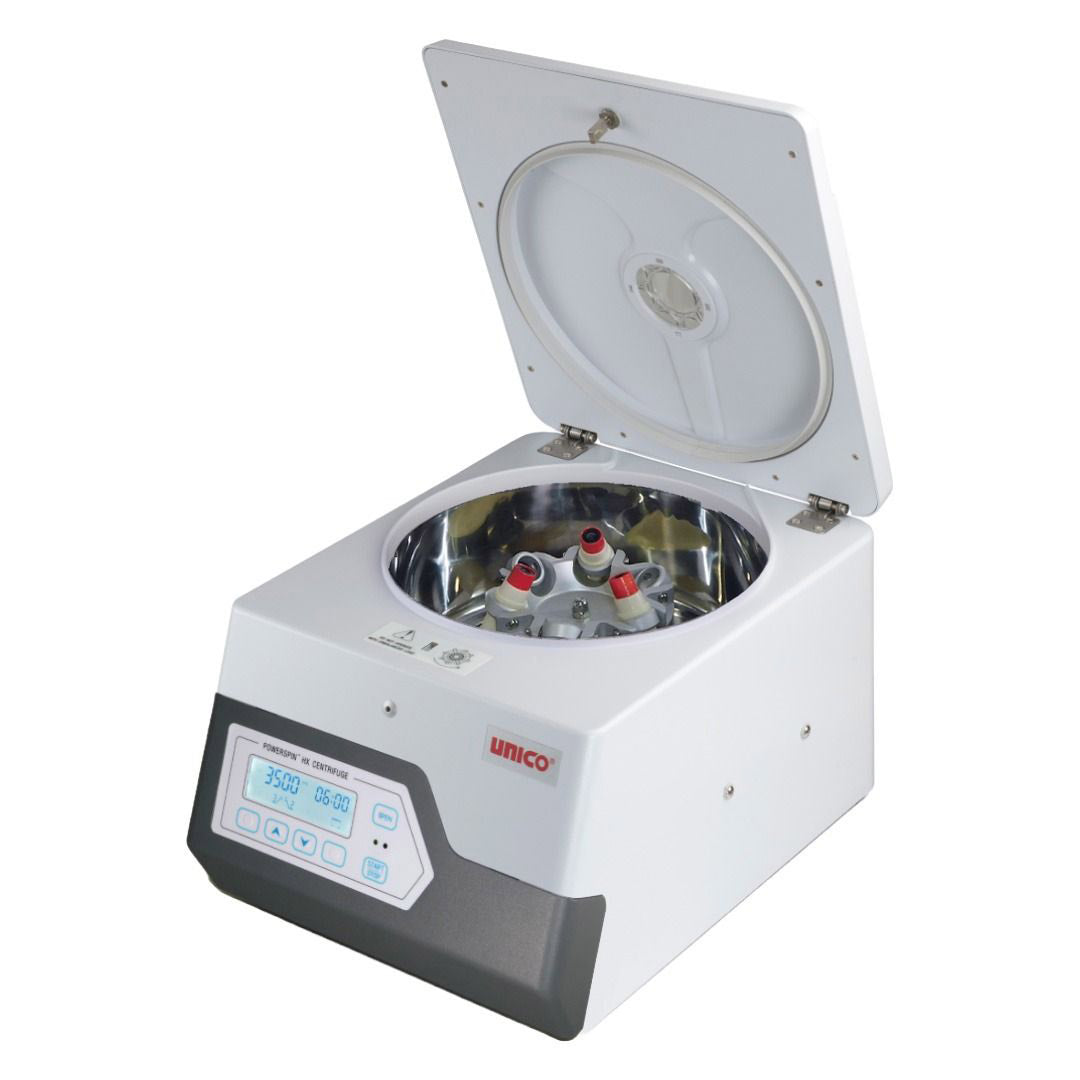

PowerSpin HX/HXV Horizontal Rotor Centrifuge - C8302/C8306/C8308

Unico PowerSpin HX or HXV Series Tabletop Centrifuges

Documentation:

The New horizontal PowerSpin with Fixed or variable speed up to 3500 RPM

The horizontal rotor insures clean, complete separation of cellular components yielding a superior serum or plasma specimen. Using a horizontal rotor for spinning Serum Separator Tubes (SSTs) creates a tight uniform horizontal seal, reducing the risk of red cell leakage and possibility of specimen deterioration. This is especially important when the specimen is sent out for testing.

It can be used to process blood, urine, semen and other materials. The all digital front panel makes it easy to select speed and run time. Large LCD display shows status, time, speed (RPM) and RCF) (g). Precise speed control enables you to comply with CLIA recommendations for specific specimens.

The PowerSpin HX or HXV features a Zero RPM safety lock, so the lid cannot be opened while the rotor is in motion. A digital timer and LCD display provide user with the precise control of the spin cycle.

Powerful 100W brush-less motor is maintenance free for years of dependable use. Stainless steel guard bowl adds even more protection, and also is easy to clean and maintain.

Unico Centrifuge HX and HXV Features

• Push button keypad controls, easy to use while wearing glvoes
• Electronic 1-99 minute timer with beep signal at end of automatic time memory reset to the last run for repetitive protocols
• Memorized time and speed settings: The centrifuge will memorize the last time and speed settings when the unit is turned off. It will resume the previous time settings when the unit is turned on
• Suction cup rubber feet allow for quiet, stable bench top operations
• Power switch with indicator light tells when unit is powered on
• Safety: Zero RPM lid latch protection. - The centrifuge lid cannot be opened until the stops spinning. It will not run unless the lid is properly closed.

C8302

• Six place horizontal spin rotor for use with standard 3 to 15 ml tubes (Optional adapters may be required for tubes less than 10 ml or 100mm length)
• Fixed speed at 3,500 RPM
• G-Force (RCFG) at 1777g

C8306

• Six place horizontal spin rotor for use with standard 3 to 15 ml tubes (Optional adapters may be required for tubes less than 10 ml or 100mm length)
• Variable speed 500 - 3500 RPM
• G-Force (RCFG at 1777g)

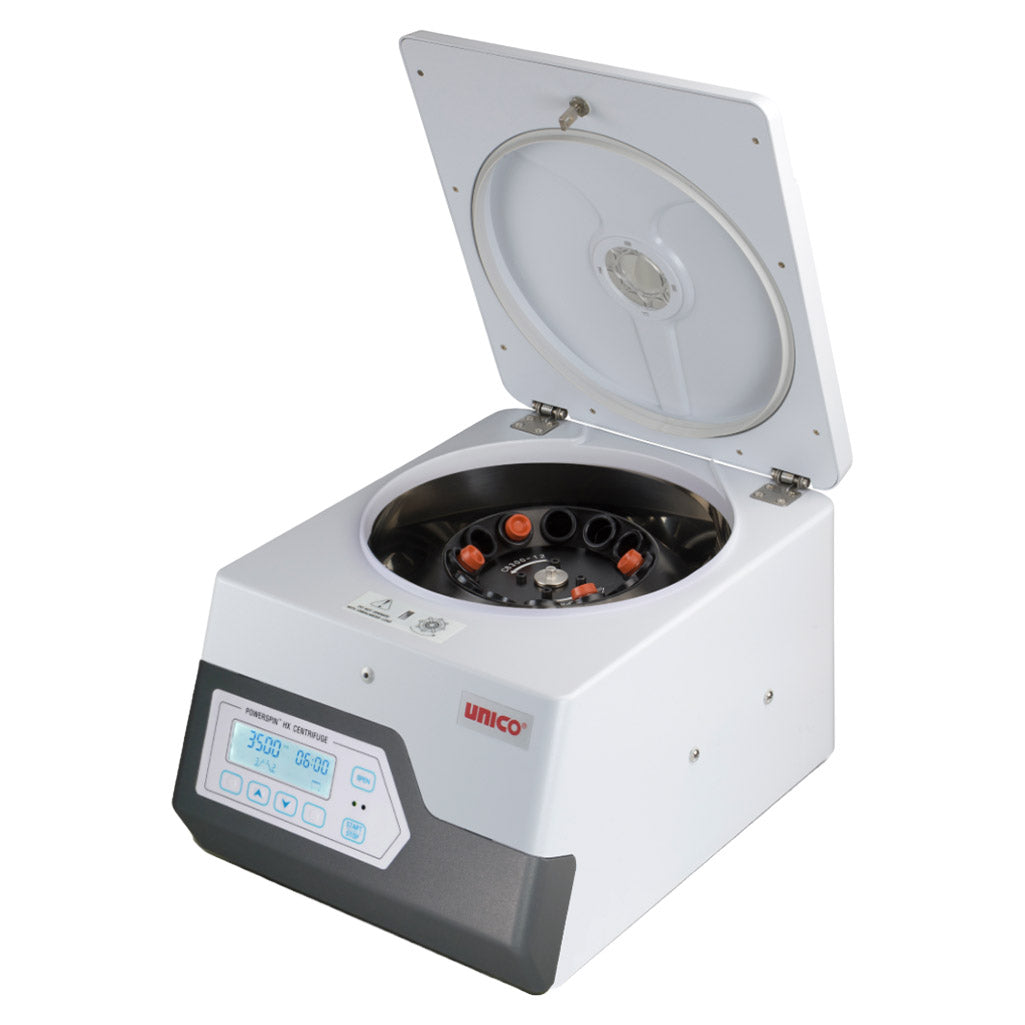

C8308

• Eight place horizontal spin rotor for use with standard 3 to 15 ml tubes (Optional adapters may be required for tubes less than 10 ml or 100mm length

• Variable speed 500- 3500 RPM
• G-Force (RCFG at 1777g)
