Westlab III Compound Microscope, SKU: C-WLB814-LED

SKU: C-WLB814-LED
Availability: Allow 10-14 Business Days Lead Time Before Shipping
(0)
$1,068.00

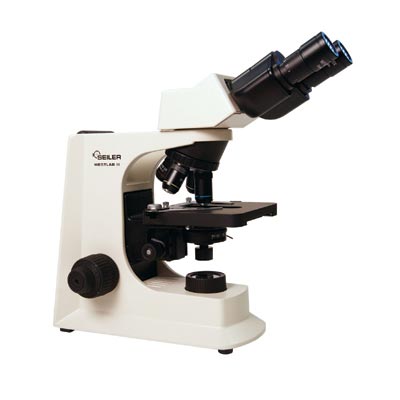

Seiler Compound Microscope - Westlab III

Economically priced routine microscope offering all the standard features of higher-priced scopes including LED illumination, coaxial coarse and fine focusing, Finity Seidentopf binocular head, right-hand graduated mechanical stage, 10x wide-field eyepieces with 20mm FOV and 4 semi-plan achromat objectives including 4, 10, 40 and 100x oil objective, all mounted on a ball-bearing inward quadruple click-stop nosepiece

Features & Specifications

  • Includes dust cover, immersion oil and BGX 1-20 fuse
  • Infinity plan objectives - 4x, 10x, 40x, 100x oil
  • LED illumination
  • Seidentopf binocular head - 30° inclined, 360° rotation
  • Eyepiece - WF10X/20mm
  • Interpupillary distance - 50-75mm
  • Reversed quadruple click-stop nosepiece
  • Coaxial coarse and calibrated fine focus control
  • Condenser - Abbe type N.A. = 1.25 with iris diaphragm
  • mechanical stage with removable slide holder 142x140mm; travel area with a right-hand stage handle
  • Anti-fungal system
  • 100V-240W universal power supply

No manuals or brochures available.
