GE Healthcare Kardia 12L ECG System

SKU: OEM-AC12L-KIT
Availability: Call for Availability
(0)
$2,275.00

GE Healthcare Kardia 12L ECG

One-cable design + AI trained with one million ECGs

With simplified leadset technology, Kardia 12L offers outstanding clinical efficiency that expands access to 12-lead recordings in more settings than ever before

Its unique single-cable design makes lead placement more intuitive and less error-prone, so even qualified personnel with infrequent ECG experience can acquire an accurate recording in minutes

With 1 million ECGs from leading U.S. medical institutions, Alivecor developed a robust algorithm with multiple deep neural network AI models. The Kardia 12L ECG algorithm received FDA 510(k) clearance by demonstrating substantial equivalence to the state-of-the-art 12-lead ECG algorithm

Streamlined 3-step workflow

  1. Get Started with the KardiaStation app - The KardiaStation app, compatible with most smartphones and tablets, guides users in selecting one of two lead set placement options depending on patient symptoms
  2. Record a 12-lead ECG - From KardiaStation, record a 12-lead ECG with just five electrodes. Providing eight standard diagnostic-bandwidth leads, it synthesizes the remaining four leads. It can detect 35 determinations (14 arrhythmias and 21 morphologies) — including acute myocardial infarction (MI) and the most common types of cardiac ischemia
  3. Share ECGs for a quick review - Recordings from the app can easily be sent to colleagues for quick review. Patient data are automatically uploaded to the KardiaPro web portal, a secure and streamlined platform to manage and review patient ECG history

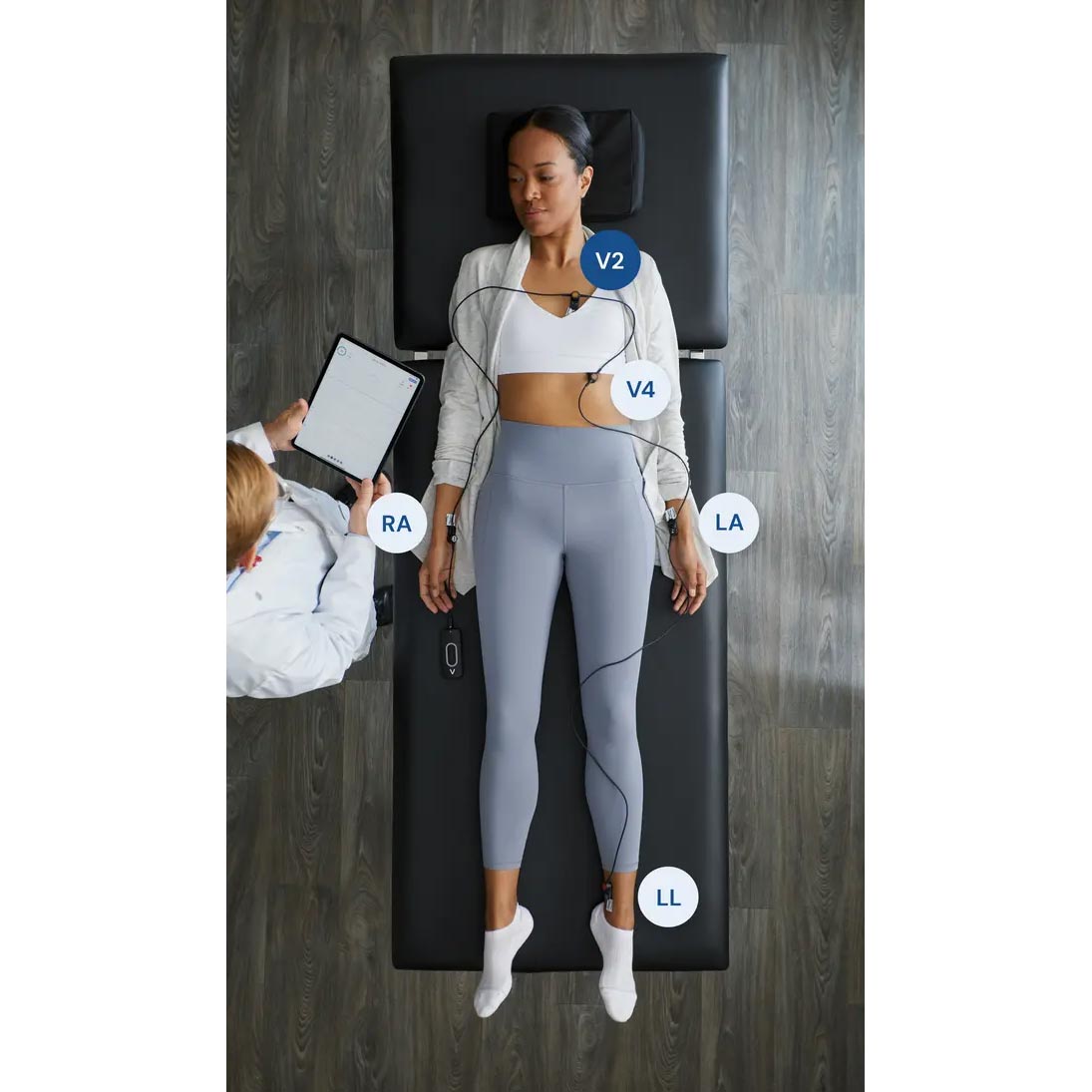

Lead Placement

Electrodes can be placed on the supine patient in either the Default or Alternate lead set locations. The KardiaStation app will guide you to select the appropriate lead placement, based on patient symptoms. Ensure Right Arm lead is placed first in order for the Leads Off function to display properly

Additional Features

  • High-quality ECG and analysis
  • 35 FDA-cleared ECG determinations
  • Light and portable, only 0.3 lbs
  • Easy to use and interpret

Detects a comprehensive set of 35 FDA-cleared determinations

Specifications

  • Weight - 135.6 g
  • Lead wire length - 9 ft
  • ECG data format - JSON
  • Data export - PDF export via KardiaStation app
  • Digital signal - Records 10 seconds of continuous signal
  • Power supply  - Two AAA alkaline batteries, pre-installed and replaceable
  • Battery capacity - Appox. 8500 recordings
  • Device lifetime - Expected service 5 years; expected battery shelf life 3 years
  • Encryption - Bluetooth Low Energy (BLE) encrypted connection to KardiaStation app; encryption at rest and in transit for all PHI within app

No manuals or brochures available.
