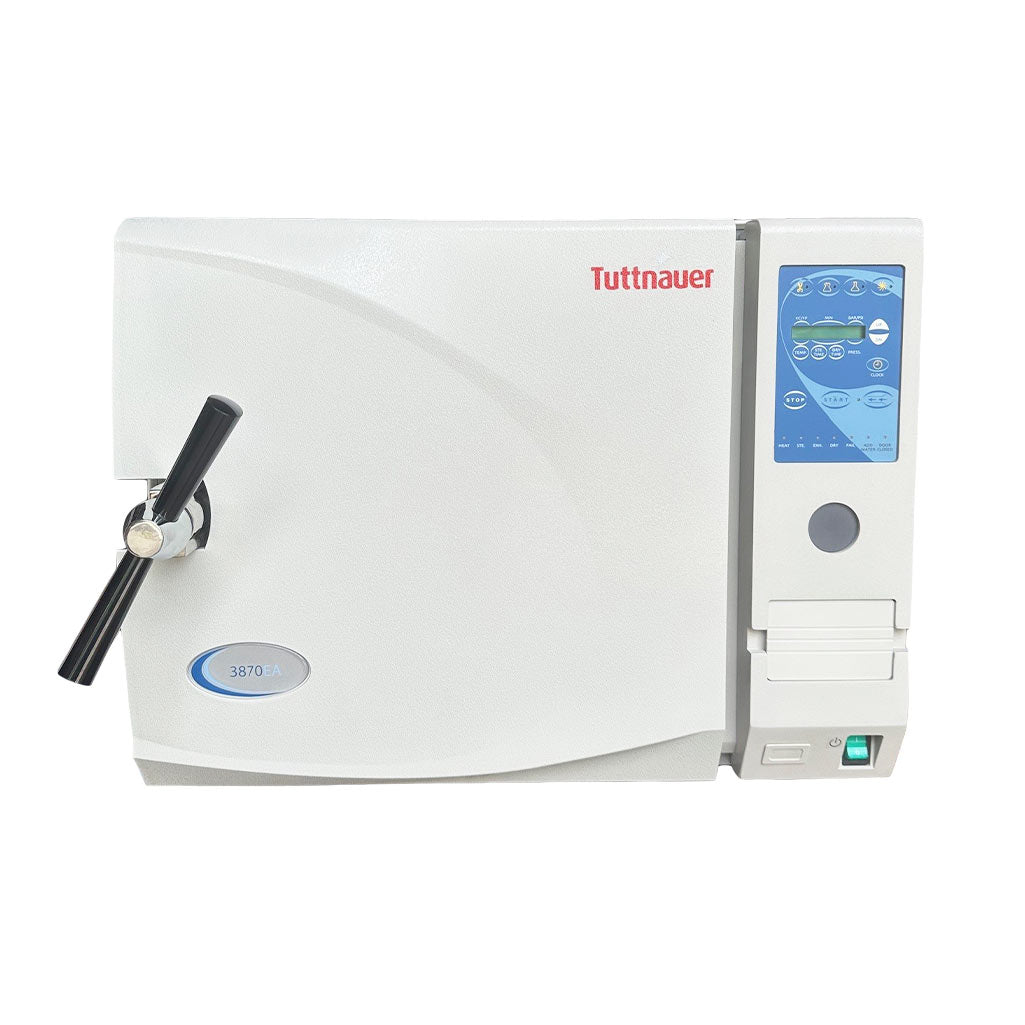

Tuttnauer 3870EA Recertified Autoclave
Buy a New or Refurbished Autoclave from Us and Enjoy 1 Hour FREE Phone Tech Support. Exclusively Available for Tuttnauer, Midmark, and Market Forge Sterilizers; Call us for more information!
The Tuttnauer 3870EA autoclave is designed for the active surgery center, medical clinic, industrial lab, doctor's office, dental practice, veterinary facility, or tattoo establishment. The stainless steel construction is ideal for sterilizing liquids, media, instruments, glassware, soil or waste products.
Each stage of the sterilization cycle is automatic and micro-processor controlled from water-fill, to sterilization, exhaust, and drying. The autoclave has a low water alarm to notify the end user when the reservoir needs to be refilled with water, an in-line particle filter protects the valves, and the standby heating is to keep the chamber warmed up in between cycles. The pressure and temperature gauge are combined plus an automatic low water shut off will prevent damage to the heating elements if there is insufficient water to complete the sterilization cycle. The heat-insulated, double-locking door provides protection to the end user from accidental burns and stops the chamber from being opened during the sterilization procedure. The autoclave has a slow or quick exhaust choice, with the fast exhaust for drying solids, and the slow exhaust for preventing media and liquid blow over. the high enhanced closed-door drying cycle maintains sterility and removes extra moisture after sterilization. A continuous pressure purge removes air pockets and ensures even sterilization, and a large capacity reservoir provides plenty of water to avoid frequent refills (with the drain located on top for simplified cleaning). The autoclave also has an automatic shut-off for saving energy, and a battery backup ensures retention of settings and controls in the event of a power failure
Features:
- Four programmed cycles: Wrapped, Unwrapped, Liquids and Drying
- Visual and audible cycle alerts

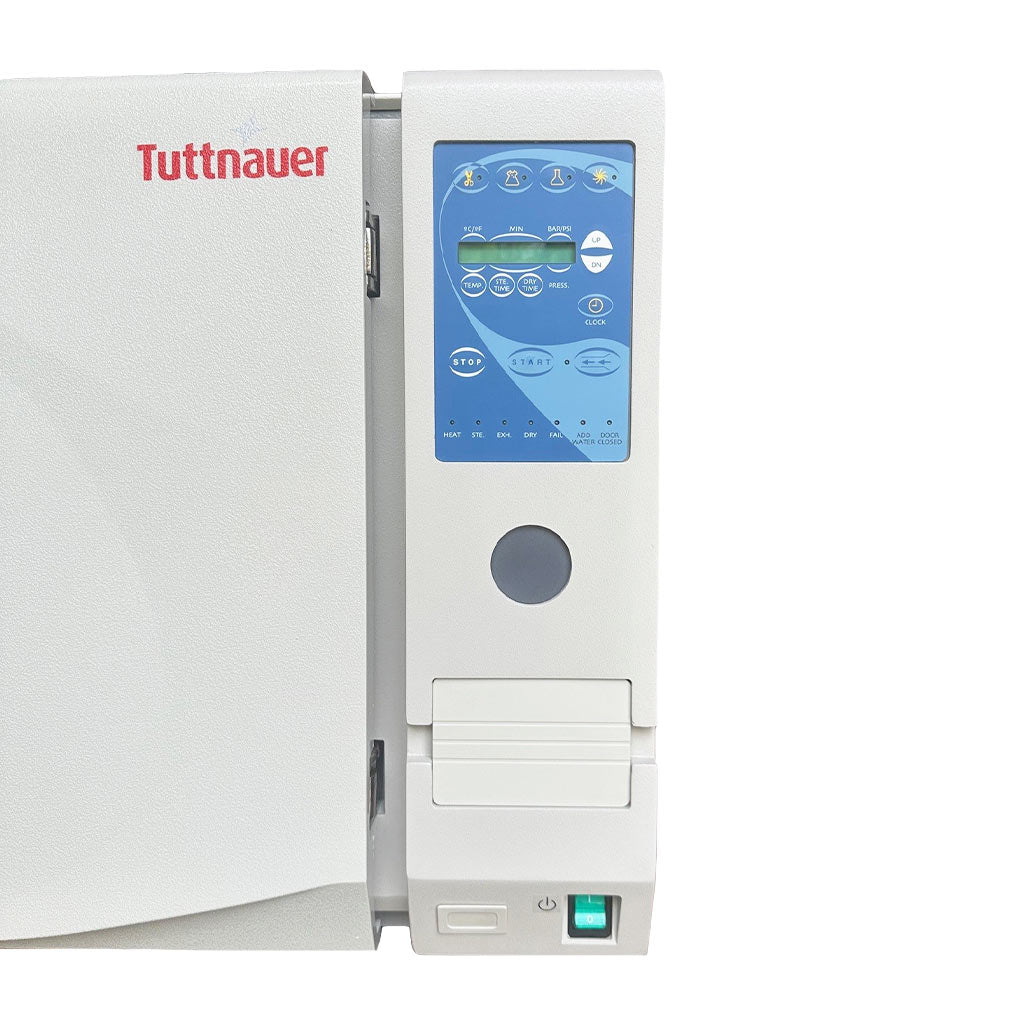

- Continuous digital display showing temperature, pressure and elapsed time
- Low water cut-off to prevent heating element burnout
- Safety door automatically seals when pressurized and cannot open until depressurized
Volume / Speed / Power
- 22 Gallon Chamber (83.3 Liters

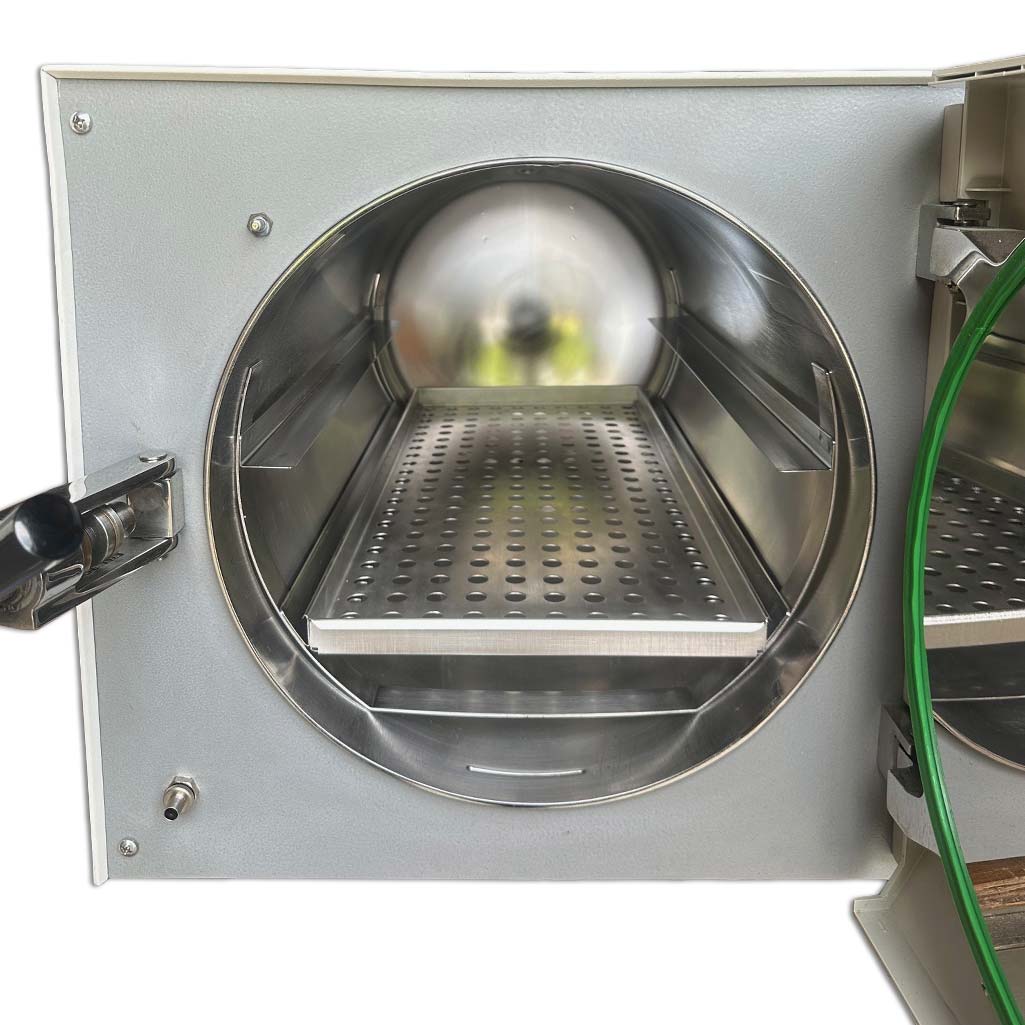

- Holds 2 Trays
- Cycle Time: Varies based on items to be sterilized - Wrapped instruments 40-55 minutes
- Temperature range: 250 degrees F - 274 degrees F (121C - 134C)
- Unit Weight: 220 lbs (99.8 kg)
- Electrical: 230 Volts, 3000 Watts, 50/60 Hz, 13 Amps
Dimensions / Weight
- Overall Size:
Width: 26" (66 cm)
Length: 34-1/2" (87.6 cm)
Height: 20-3/4" (52.7 cm - Chamber
Diameter: 15" (38.1 cm)
Length: 30" (76.2 cm) - Large Tray Size
Width: 14" (35.6 cm)
Length: 26" (66 cm)
Height: 1" (2.5 cm) -
Small Tray Size
Width: 11" (27.9 cm)
Length: 26" (66 cm)
Height: 1" (2.5 cm)
This unit has gone through our preventative maintenance process and has been fully recertified. The following is a list of some of the highlights
- We do a thorough inspection of ALL components, cosmetics, and functionality of the 3870EA autoclave
- The frame and chassis are sanded and painted as needed
- We clean the reservoir tank of debris and particulates as needed
- The unit has a new PM Kit which includes door and dam gaskets, filters and door springs
- We make sure ALL moving parts are cleaned and lubricated
- We make sure that all pressure and water leaks are repaired
- Tested and working within manufactures specifications
- We add additional assurance by repeating the cycle testing
- We complete SSI testing at various positions within the chamber
No manuals or brochures available.
90 Days
